Product range
Specifications you can quote from.
Six product lines built around fiberglass mesh, plus one related material for industrial floors. Finished weights for fiberglass mesh and tape can be developed from about 40 g/m² to 300 g/m² by order, subject to the application, yarn, coating and approved sample. Mesh count and opening are flexible; every table below is a starting point, not a closed range.
Selected photos
See the range before you quote it.
A practical photo reference from our selected product and shipment images. One category can include several colours, roll formats and close-up details; the final construction, weight, mesh opening and packing are confirmed against the order and approved sample.

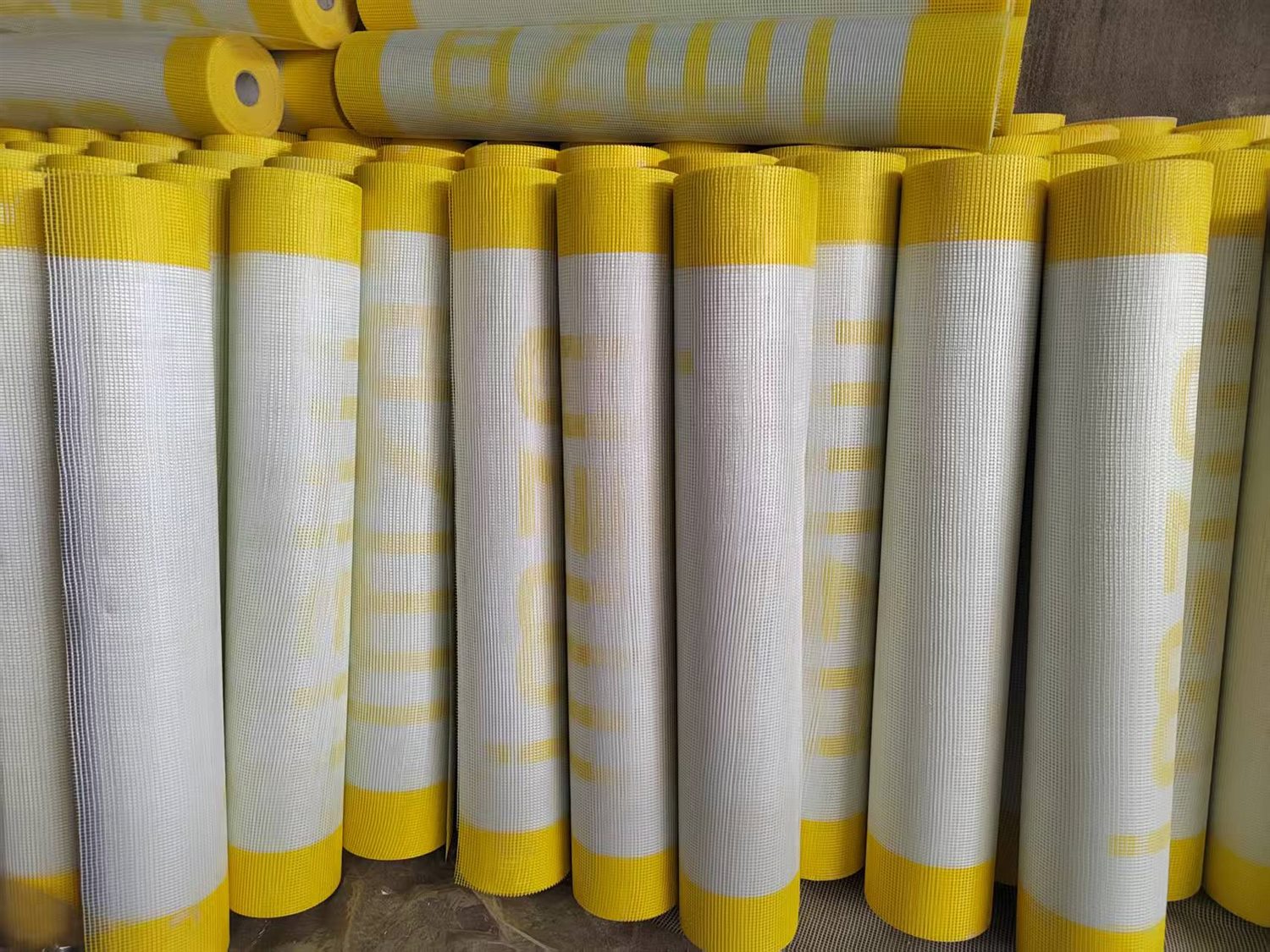

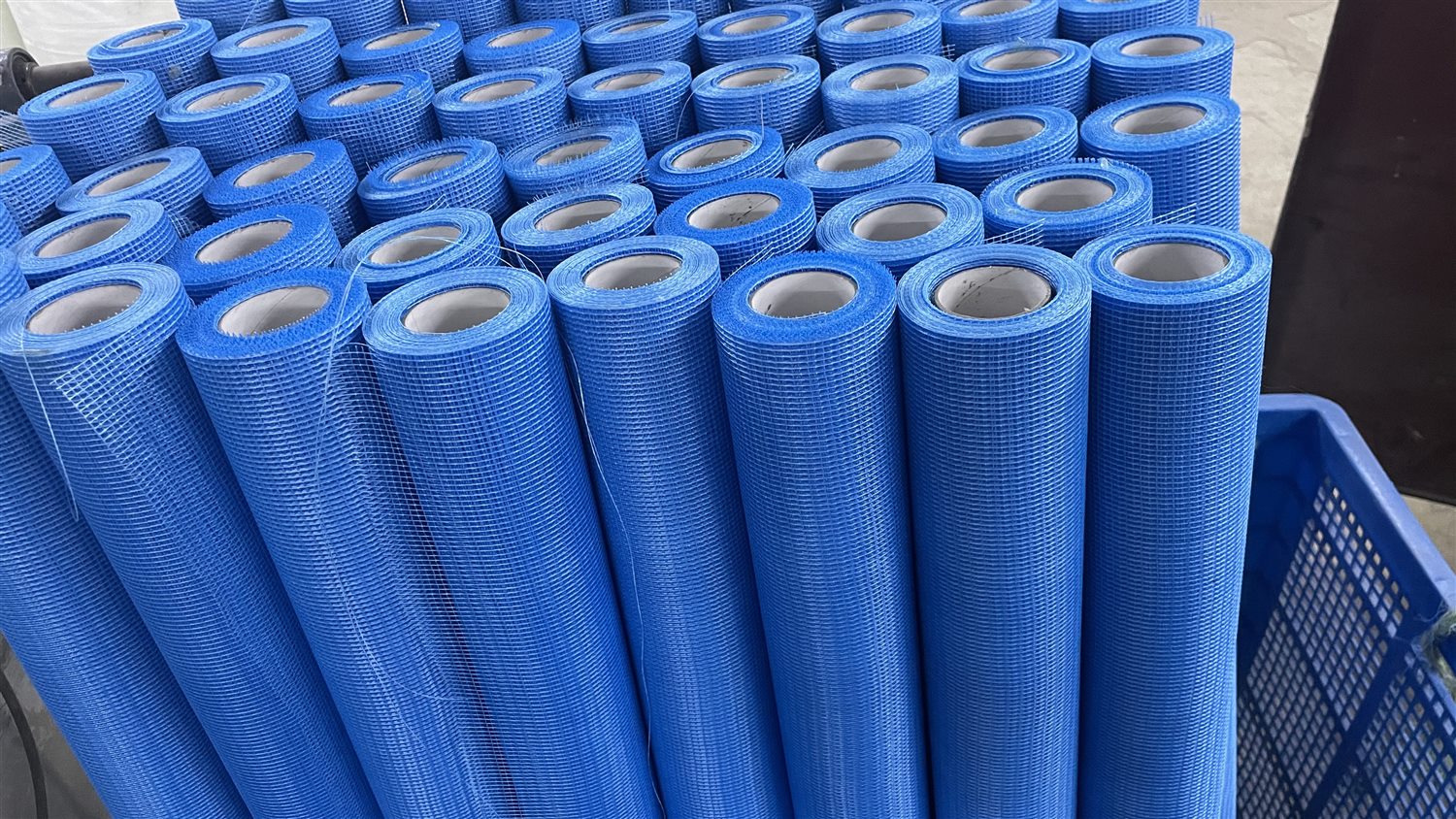

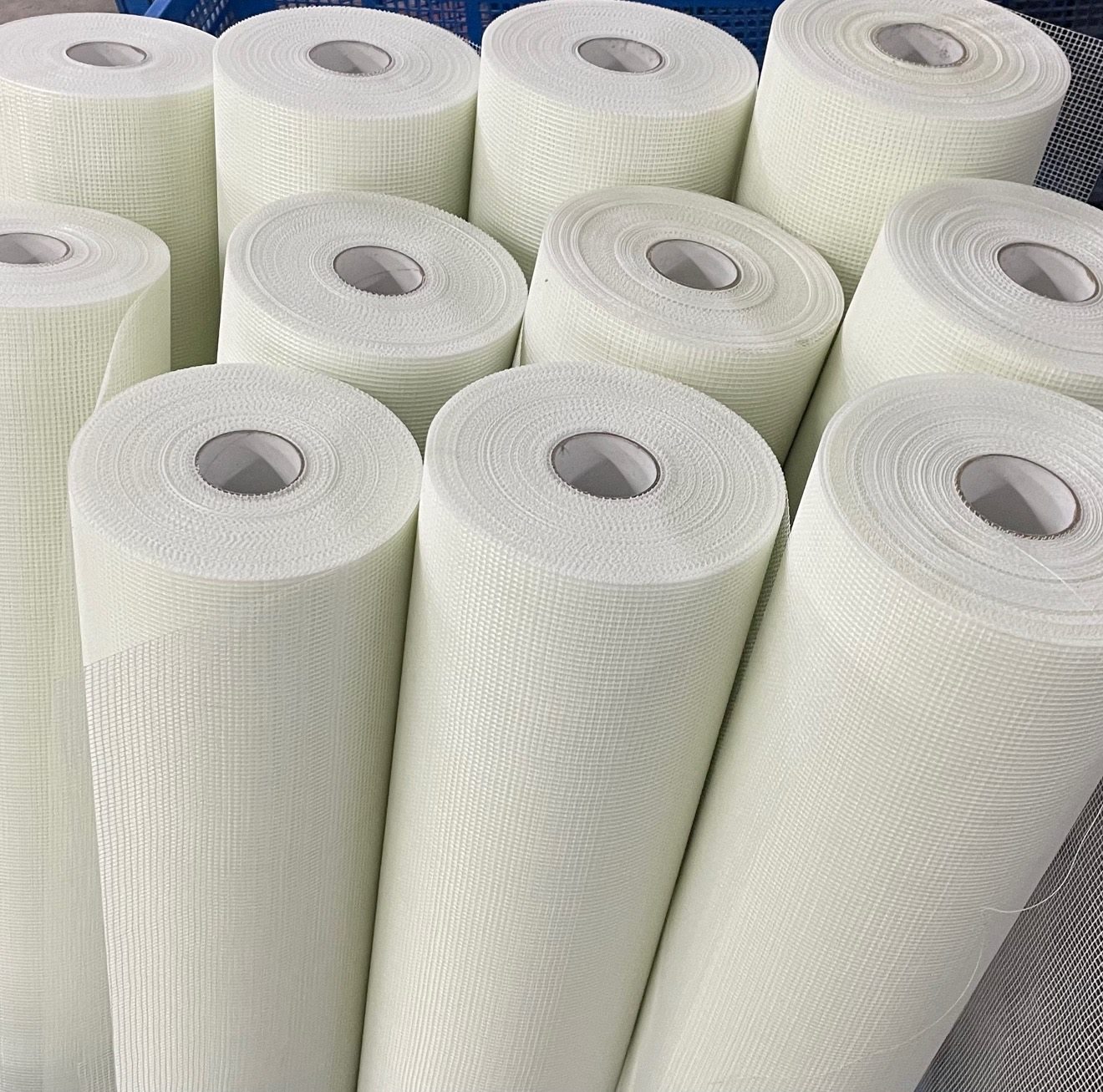

Fiberglass mesh fabric · colours and constructions
Representative woven mesh appearances, including white, blue, red, orange, yellow and labelled rolls.

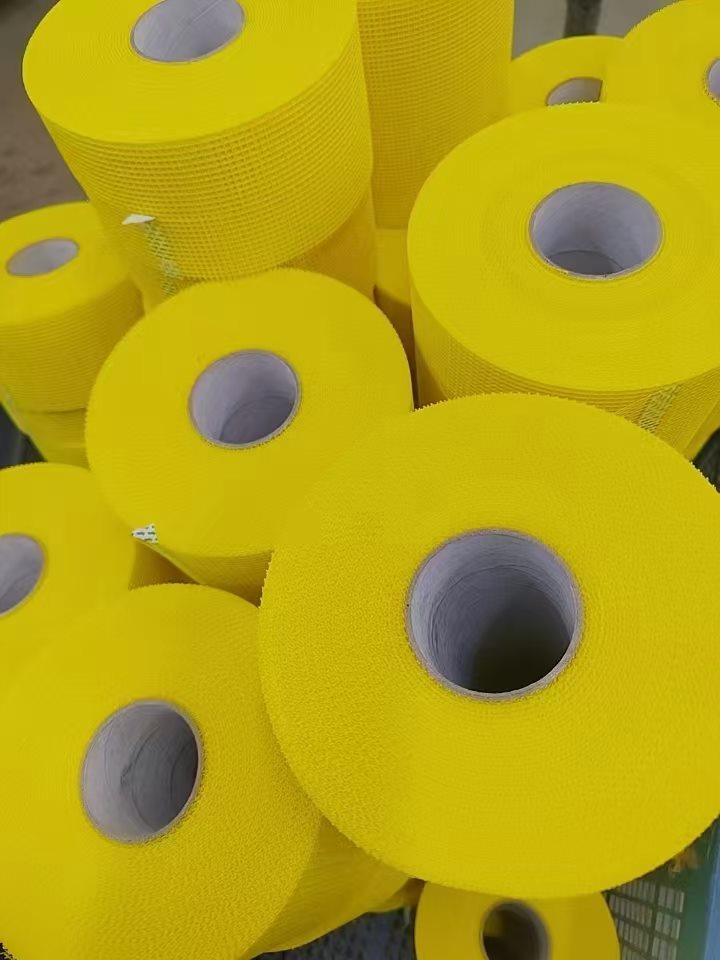

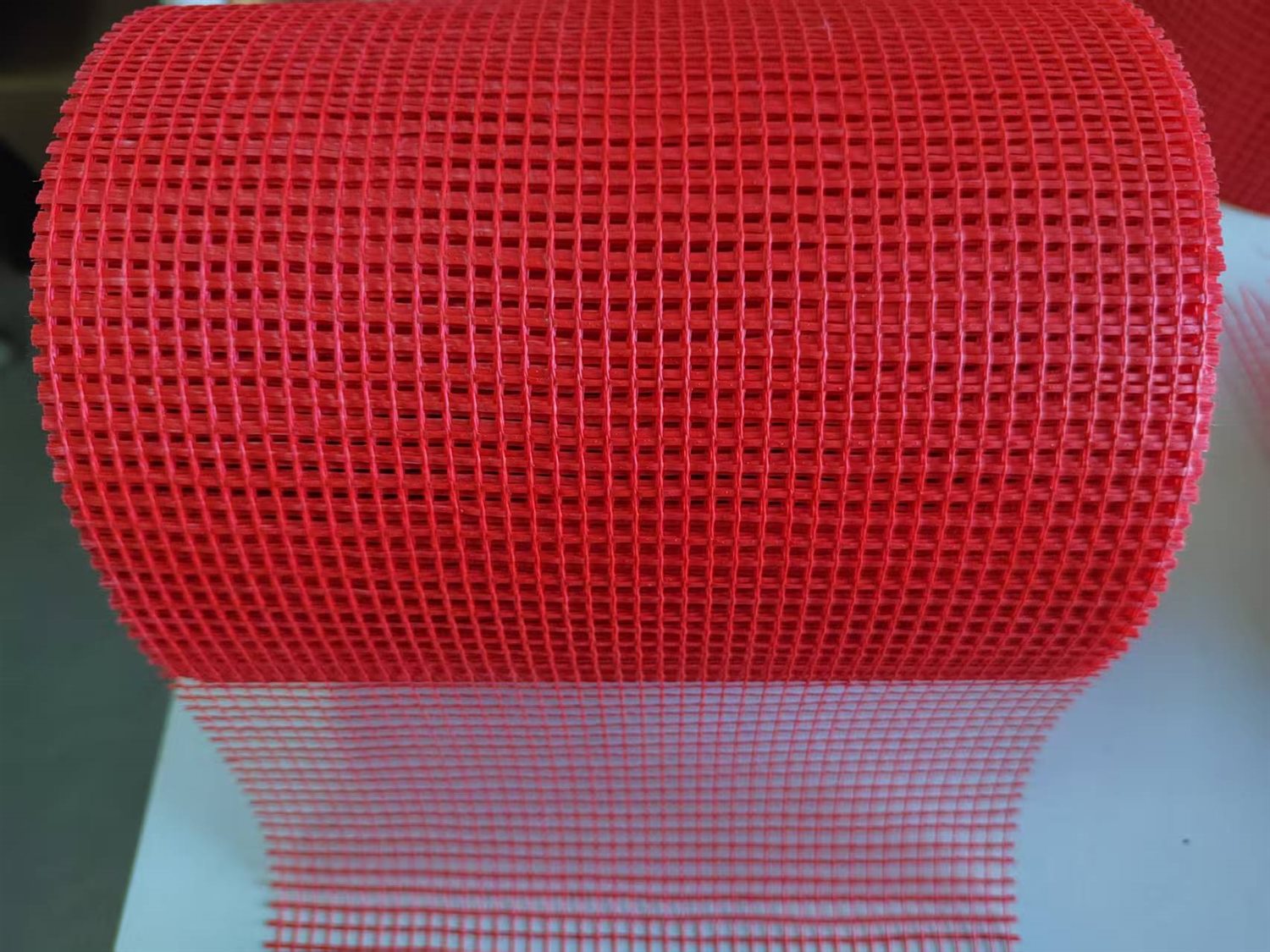

Mesh tape and finished rolls
Several roll colours and packing presentations can be developed within the agreed construction and application.

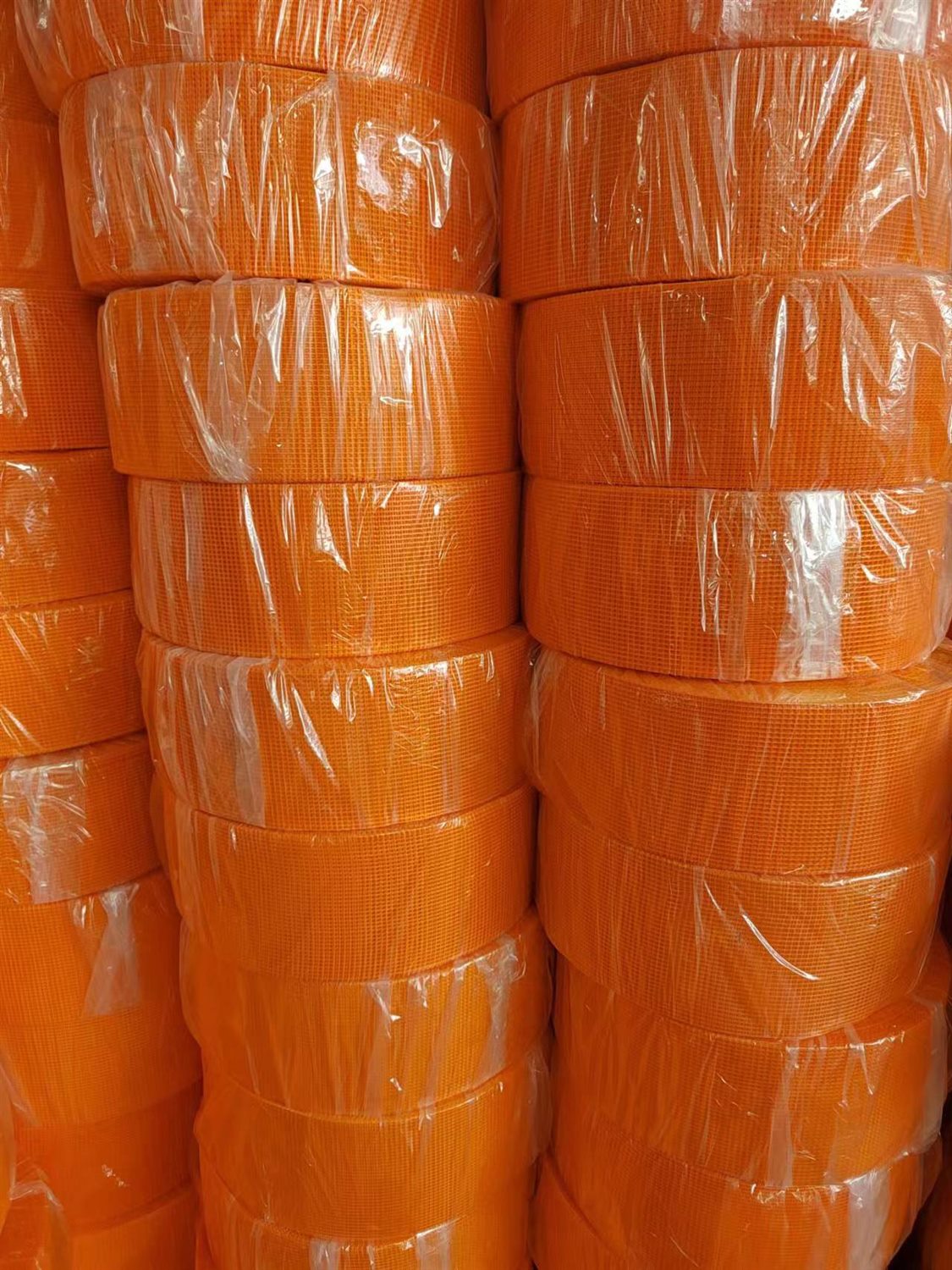

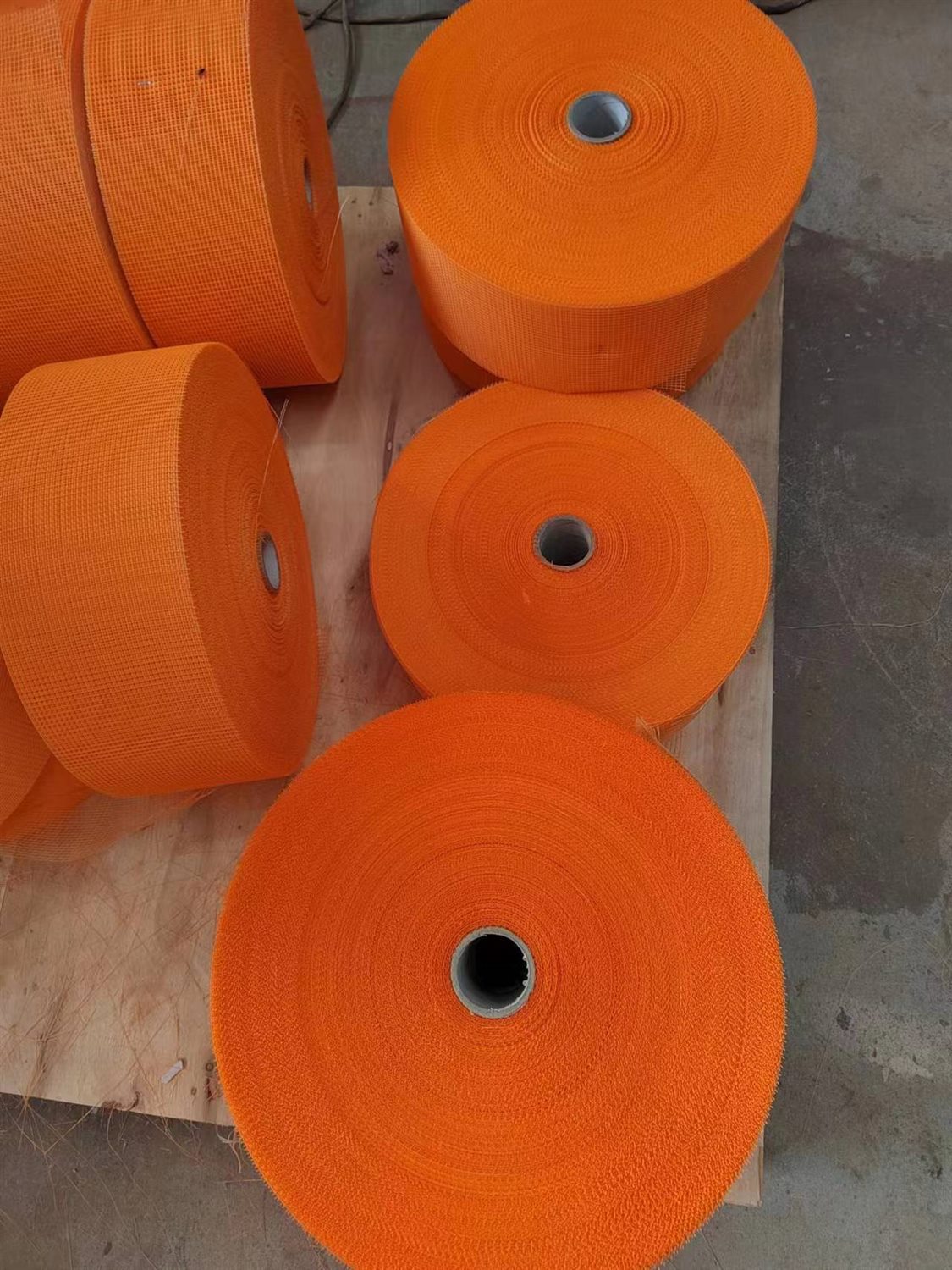

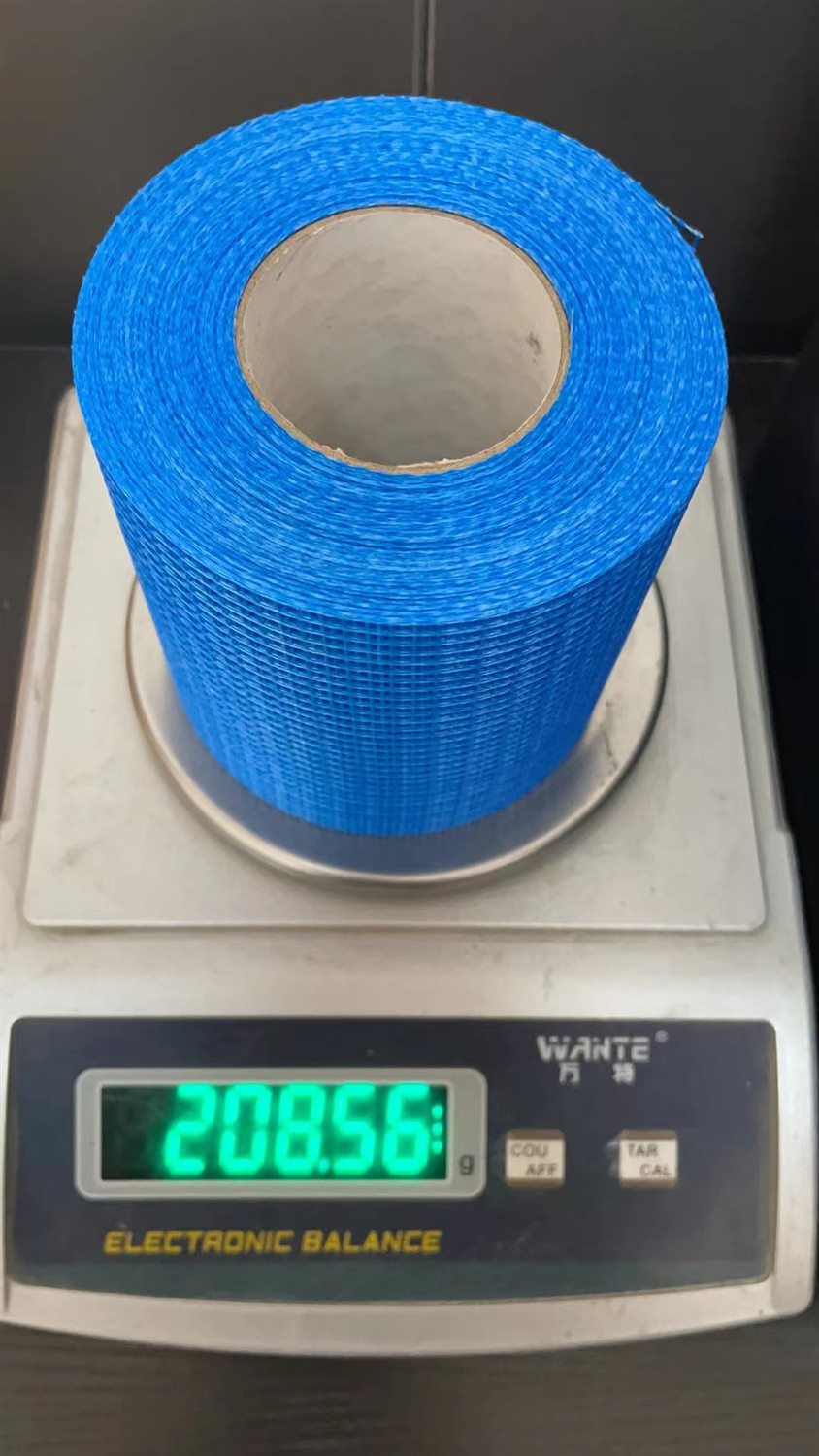

Slitting, roll size and finished inspection
Photos show converting and inspection examples. Actual width, length, core, weight and winding tension are set in the quotation.

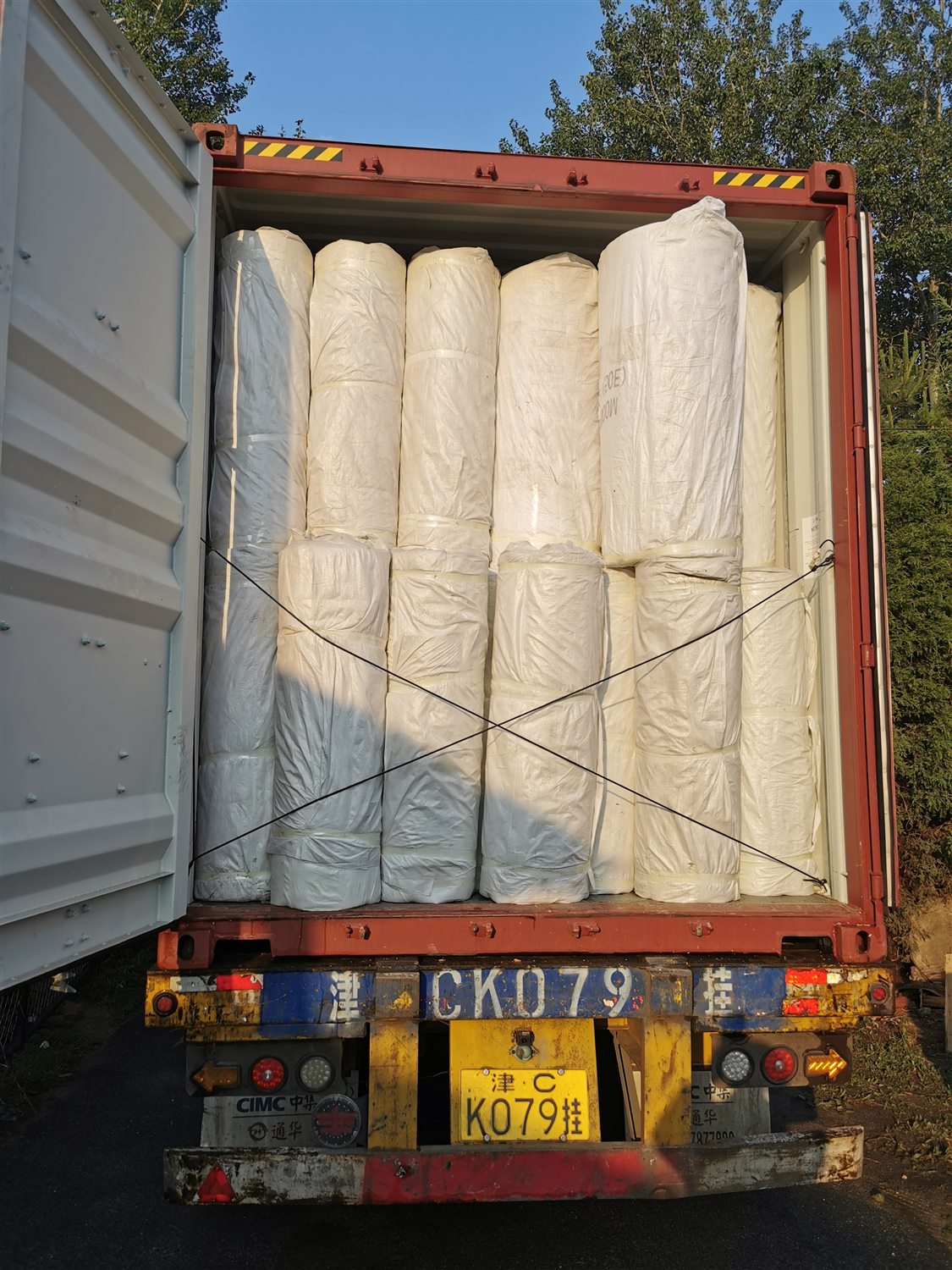

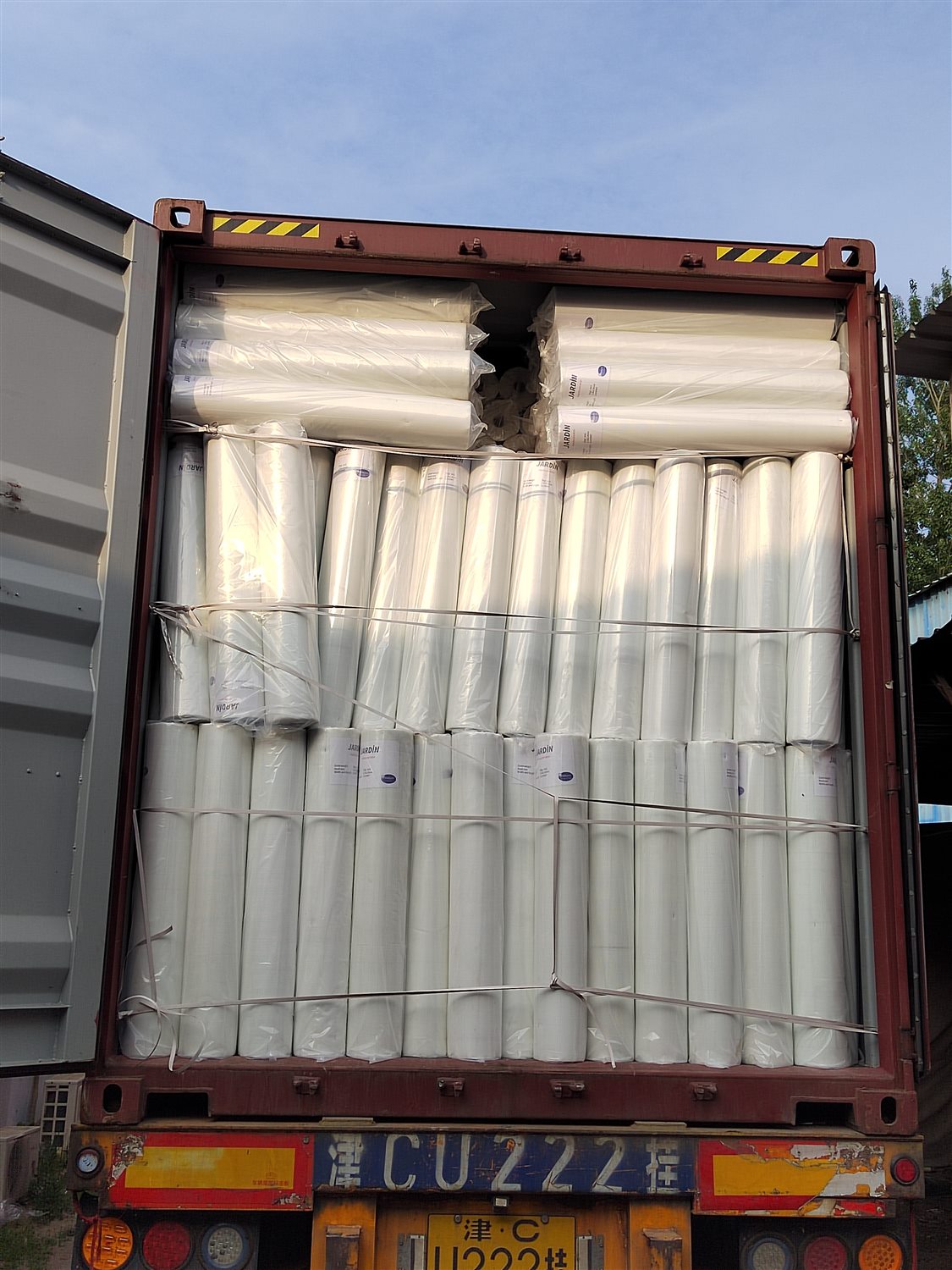

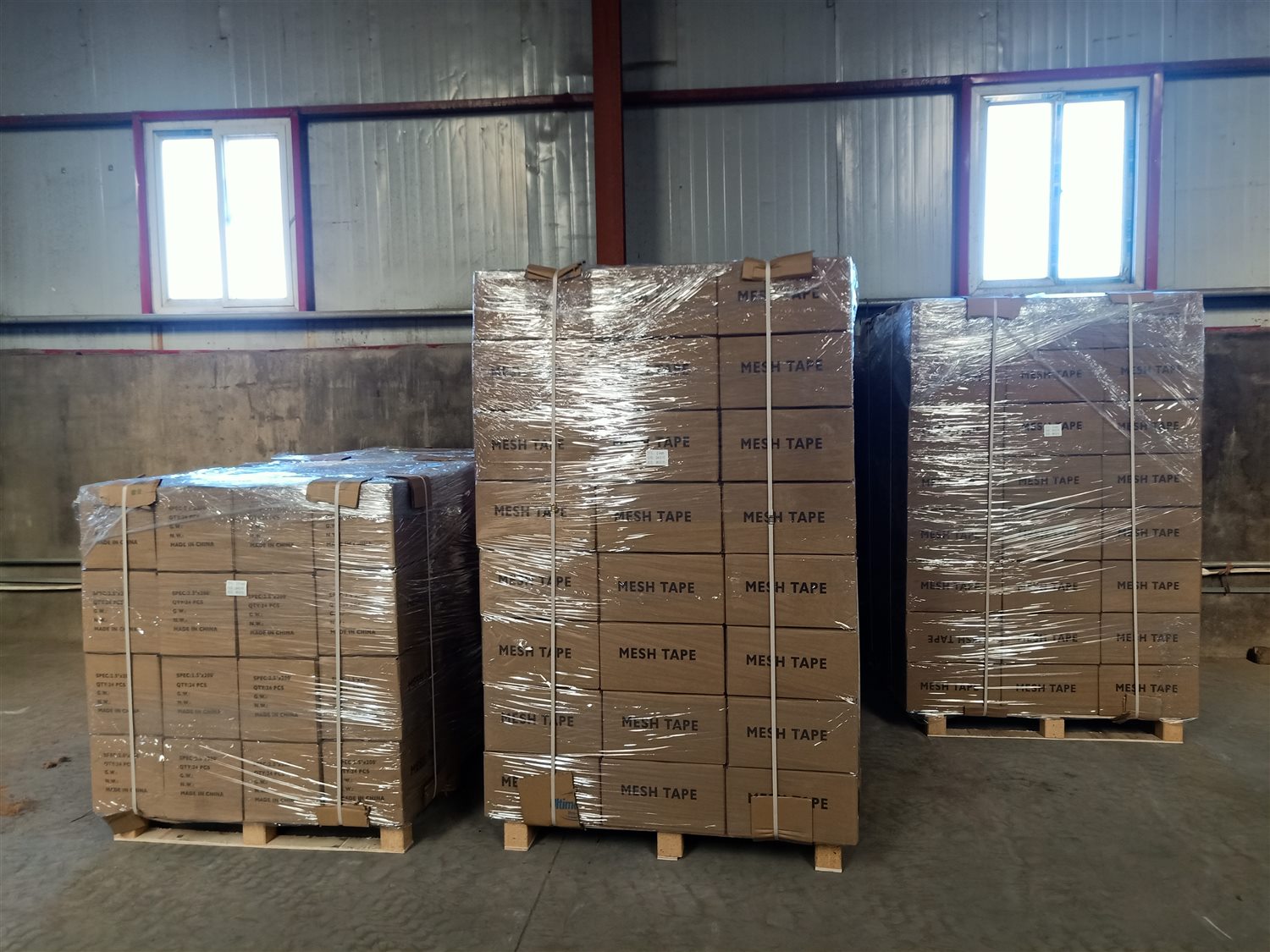

Packing and export loading
Export packing, carton presentation and loading are planned together with the roll specification and destination.
Customer and trade-show context
These images show the kind of product discussion and market-facing presentation behind the range.
01 · Core offer
Self-adhesive fiberglass mesh tape
The mature export line: a 70 gsm reference finished tape for drywall joint reinforcement and crack repair, supplied to distributors, private-label brands and project buyers. Other finished weights and mesh constructions can be developed by order.
Applications
- Reinforcing drywall and gypsum-board joints.
- Crack repair and patching in plaster and render.
- Distribution under the buyer's own label, subject to packing approval.
Outdoor cement-board systems: an approximately 120 gsm outdoor tape is under separate validation. The 70 gsm reference construction is not offered as an automatic substitute for a validated outdoor system tape.
| Product | Self-adhesive fiberglass mesh tape |
|---|---|
| Finished weight | 70 g/m² |
| Width | 50 mm or 100 mm |
| Roll length | 90 m |
| Mesh size | 3 × 3 mm or 2.85 × 2.85 mm — confirmed against sample, not interchanged |
| Roll diameter | Approx. 16 cm; confirmed on the approved sample |
| Core | Paper core, 53–54 mm outside diameter |
| Adhesive | Two-pass: sizing (hard) coat plus pressure-sensitive adhesive coat |
| Standard packing | Individual label and shrink wrap; neutral export carton |
| Private label | Available after artwork, colour and MOQ approval |
| Commercial terms | Quoted after specification, quantity, packing and destination are confirmed |
| Finished roll | Rolls per carton | Carton |
|---|---|---|
| 50 mm × 90 m | 36 | Neutral export carton, label + shrink per roll |
| 100 mm × 90 m | 18 | Neutral export carton, label + shrink per roll |
A 460 × 310 × 320 mm carton has been used as a reference in past shipments for this range. Carton outside dimensions and roll counts are re-confirmed for each order, because they decide the container loading plan.
02 · Render & composite
Alkali-resistant fiberglass mesh fabric
Woven mesh fabric for exterior render reinforcement, cementitious composites and stone backing. Supplied coated or uncoated, on 1 m rolls or as master rolls.
| Mesh | Opening (nominal) | Weight | Width | Roll length |
|---|---|---|---|---|
| 10 mesh | ≈ 2.5 × 2.5 mm | 90 g/m² | 1 m | 50–100 m |
| 8 mesh | ≈ 3.2 × 3.2 mm | 45 / 56 g/m² | 1 m | 50–100 m |
| 6 mesh | ≈ 4 × 4 mm | 90 / 160 g/m² | 1 m | 50–100 m |
| 5 mesh | ≈ 5 × 5 mm | 80 / 95 g/m² | 1 m | 50–100 m |
| Large eye | Coarse opening — confirmed per order | 100 / 110 g/m² | 1 m | 50–100 m |
Openings are nominal conversions of the mesh count; the approved sample governs. Mesh count and opening are flexible by application. Alkali-resistant sizing is applied for render applications. Other widths, weights and roll lengths can be produced to order; the table is not an exhaustive range.
Where it goes
- Base-coat reinforcement over exterior insulation boards (ETICS / EIFS).
- Render and plaster crack control.
- GRC, thin precast elements and stone backing.
- Reinforcement mesh for bonded abrasives.
Alkali-resistance test data for the reference construction (160 g/m², 4 × 4 mm) is published on the quality page. Every other construction is tested separately — ask for the report that matches your order.
03 · For converters
Coated master rolls & converting grades
For buyers with slitting and packing capability in their own market. Master rolls are quoted after volume, winding and unloading method are agreed.
| Master roll width | 1.0 m / 1.2 m |
|---|---|
| Master roll length | 1000–2000 m |
| Construction | Sizing coat then pressure-sensitive adhesive coat, applied on our own line |
| Finished weight range | Reference constructions commonly shown at 60–110 g/m²; broader fiberglass mesh/tape constructions can be developed from about 40 g/m² to 300 g/m² by order |
| Slit widths | 50 mm, 100 mm and custom widths |
| Slit roll lengths | 45 m, 90 m, 100 m, 120 m and custom lengths |
| Core | 53–54 mm paper core; 76 mm heavy core available |
| Colour | White, blue, yellow, orange, pink and black — confirmed per order |
| Before quotation | Finished weight, mesh, colour, adhesive level, winding tension, core, maximum outside diameter and unloading method |
Equipment for local converting is discussed only after stable monthly consumption and converting capability are demonstrated — we do not sell a line into an unproven volume.
04 · Private label
Your brand on the roll and the carton.
Own-label supply works when the artwork, roll count and carton are fixed before production. We review all of it with you, in writing, before the order is released.
- Label artwork — your file, checked for print size and roll diameter.
- Roll colour and print — plain, printed mesh or coloured yarn per order.
- Pack format — shrink wrap, individual label, display pack or bulk roll.
- Carton — neutral export carton or printed carton with your branding.
- Mixed cartons — combinations of widths and SKUs, planned with the loading calculation.
Certification and conformity marks are only printed where the product and destination actually support them. We do not print a claim on a carton that the shipment cannot back up.
05 · Industrial
Abrasive & grinding-wheel reinforcement mesh
Mesh fabric used as the reinforcement layer inside bonded abrasives, where consistent mesh geometry and clean yarn matter more than surface finish.
| Product | Typical construction | Form |
|---|---|---|
| Cutting disc reinforcement | Reference example: 5–7 mesh, 60–145 g/m² | Roll, slit to disc diameter |
| Grinding wheel reinforcement | Coarse mesh, heavier weight | Roll or cut disc |
| Flap-disc backing | Medium mesh, sized | Roll or cut disc |
Abrasive constructions are usually fixed by the disc or wheel manufacturer's own process. Send the mesh opening, weight, width and disc diameter you use, and we will confirm feasibility against the requested application and approved sample.
06 · Upstream
Glass fiber yarn
Yarn is where mesh strength starts. We use these counts in our own weaving and supply them as a raw material to mesh and tape producers.
| Count | Typical use |
|---|---|
| 33 tex | Warp yarn for mesh fabric and self-adhesive tape |
| 67 tex | Mesh fabric weaving |
| 100 tex | Heavy mesh fabric, warp direction |
| 500 tex | Heavy mesh fabric, weft direction |
Counts, twist and package size are confirmed against your weaving plan. Tell us the mesh opening and target tensile strength, and we will propose the yarn combination that reaches it.
07 · Related material

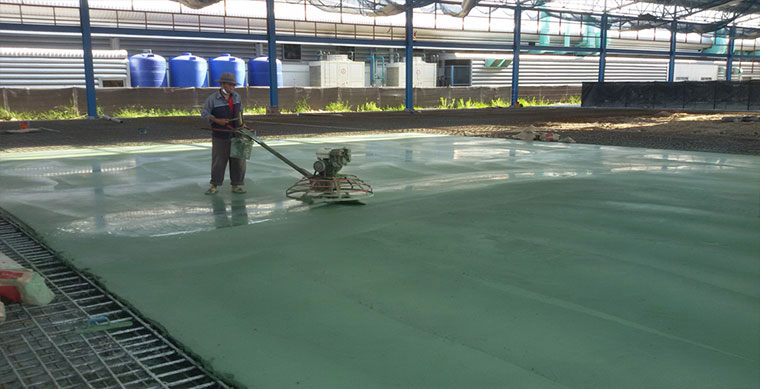

Non-metallic floor hardener, I-type
A dry-shake hardener applied monolithically with fresh concrete to build a wear-resistant surface for industrial floors. Supplied alongside our mesh range for buyers who serve the same construction channel.
| Aggregate content | 55–65 % |
|---|---|
| 28-day flexural strength | ≥ 11.5 MPa |
| 28-day compressive strength | ≥ 80 MPa |
| Recommended dosage | 5 kg/m² |
| Packing | 25 kg/bag |
| Curing | Minimum 7 days |
Applied by dry-shake in two passes while the concrete is still plastic, then power-trowelled. This is not a stand-alone topping — renovation of an existing floor needs a separate assessment of substrate strength and bond.
Quotation input
What to send with your enquiry.
Enquiries that arrive with these details are answered with a usable price in the first reply. Enquiries without them get a question back — that is not a delay tactic, it is the only way to quote a construction accurately.
- Application — drywall joints, render, composite, abrasive or other.
- Width, roll length and mesh opening (in mm or mesh count).
- Finished weight in g/m², and whether coated or uncoated.
- Colour, adhesive level and core diameter if specified.
- Trial quantity and expected annual volume.
- Packing — neutral carton, printed carton or private label.
- Destination port, Incoterm and any conformity requirement.
- Whether a sample must be approved before the order.
Not sure which construction fits?
Describe the application and the performance you need. We will tell you what is standard, what needs a sample, and what we cannot do.
